Estimados,
Escribo para pedir consejo ya que después de muchos intentos de cambiar la
configuración, al fin me permitió crear las dos interfaces virtuales del
router, sin embargo ahora el ping entre los PC no funciona (el viernes sí
funcionaba, usé la misma configuración), el mensaje que arroja es

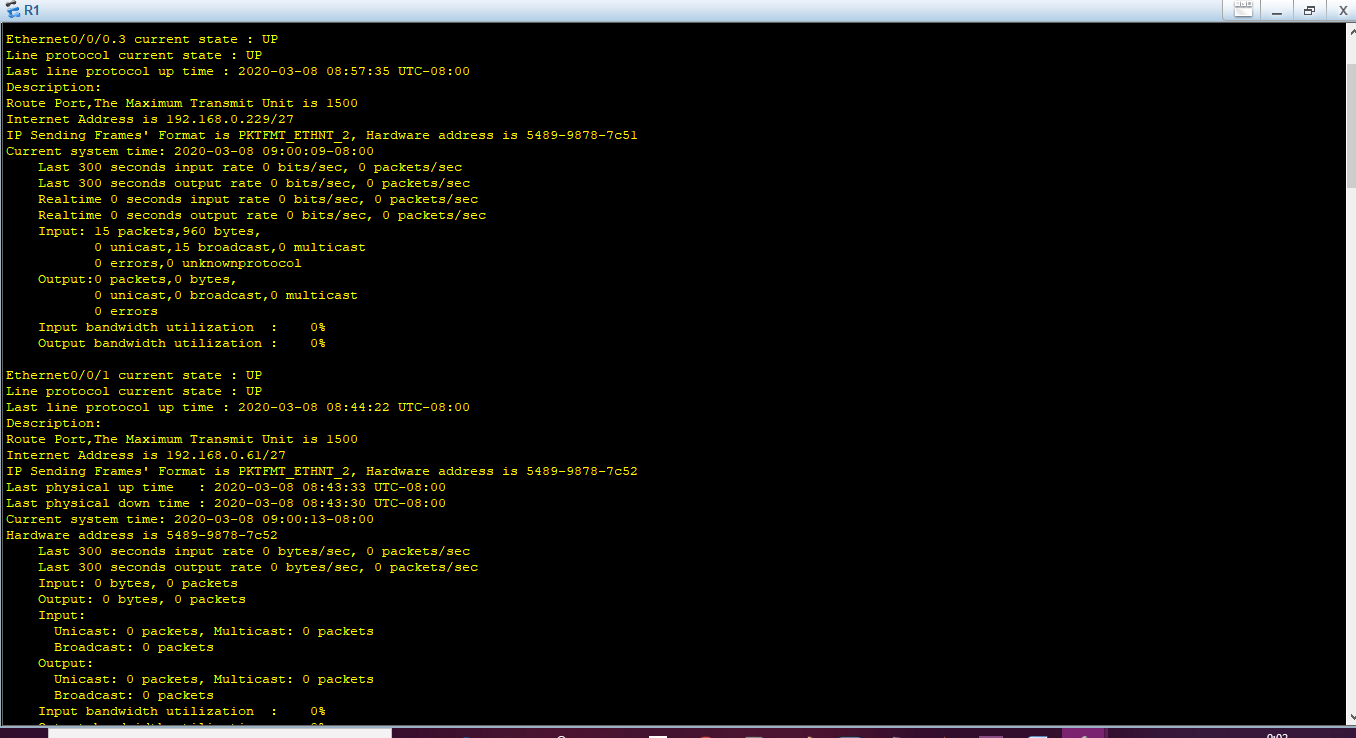

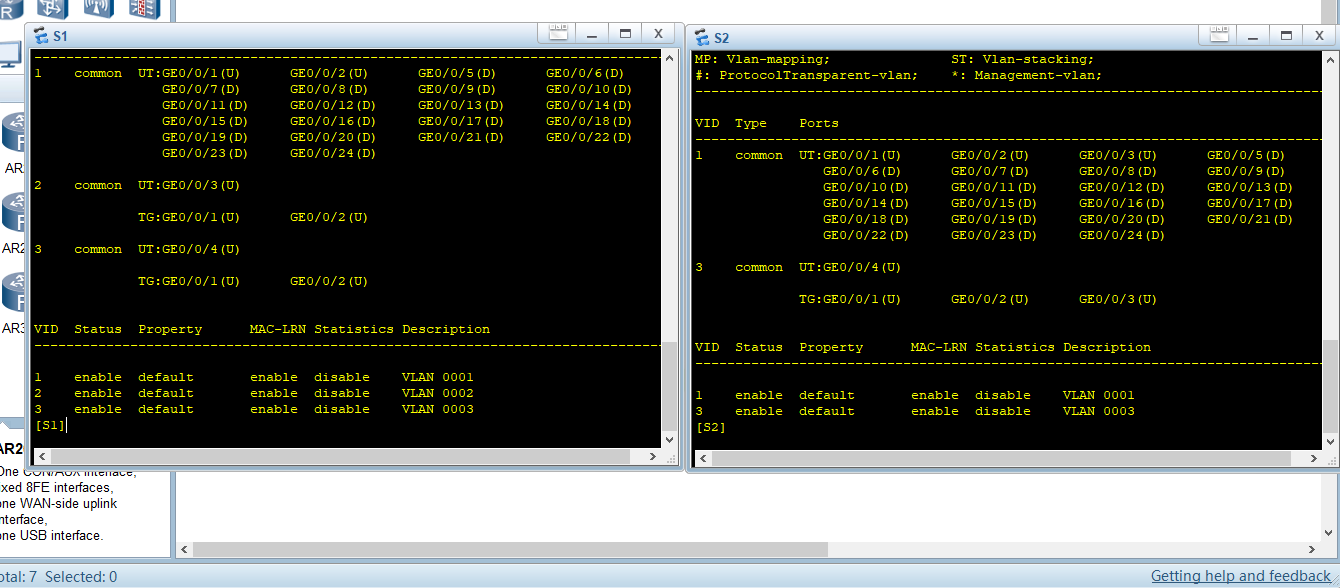

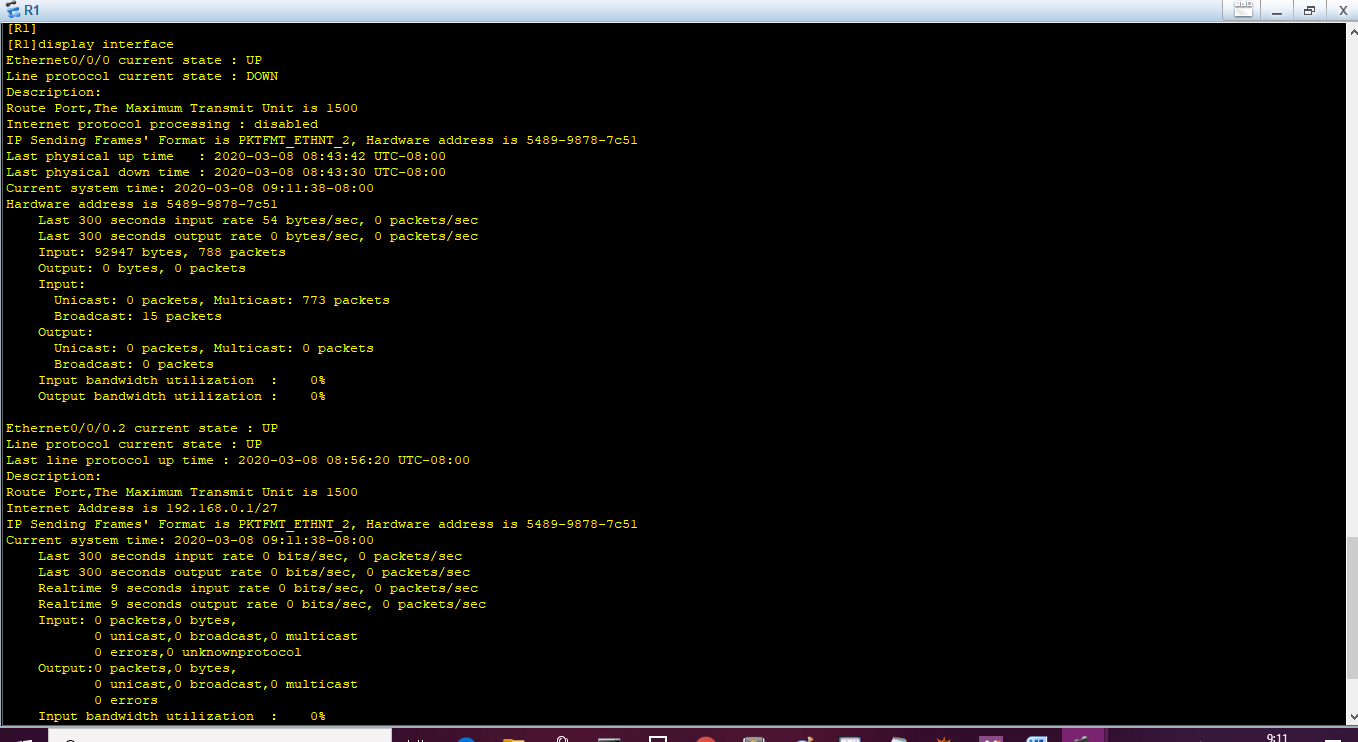

"Destination host unreachable". Adjunto capturas de las vlan y el estado de
las interfaces del router (las 2 virtuales y la física). También envío los
comandos que usé para que por favor me corrijan o si pueden sugerir qué me
falta.
De antemano gracias y saludos,
_____________________________

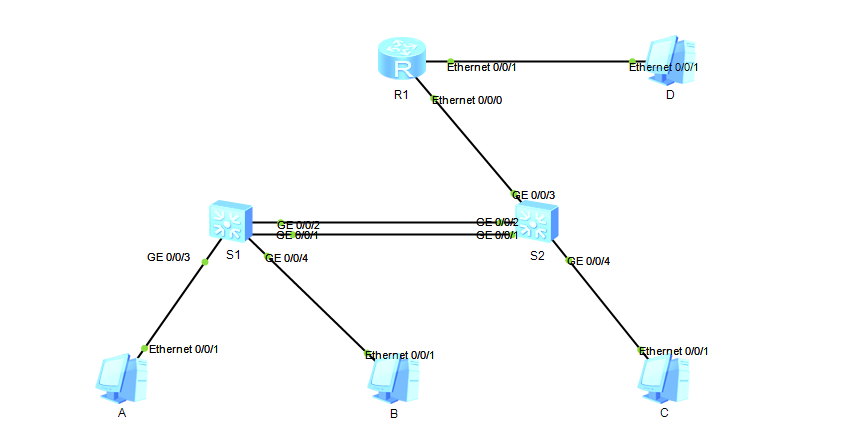

Switch 1:
system-view
sysname S1
vlan batch 2 3
interface GigabitEthernet0/0/1 (la q da al otro switch)
port link-type trunk
port trunk allow-pass vlan all
quit
interface GigabitEthernet0/0/2 (la q da al otro switch)
port link-type trunk
port trunk allow-pass vlan all
quit
interface GigabitEthernet0/0/3 (la que da al pc A)
port link-type access
port default vlan 2
quit
interface Ethernet0/0/4 (la que de al pc B)
port link-type access
port default vlan 3
quit
stp root primary
___________________
Switch 2:
system-view
sysname S2
vlan 3
interface Ethernet0/0/3 (la q da al router)
port link-type trunk
port trunk allow-pass vlan all
quit
interface Ethernet0/0/1 (la q da al otro switch)
port link-type trunk
port trunk allow-pass vlan all
quit
interface Ethernet0/0/2 (la q da al otro switch)
port link-type trunk
port trunk allow-pass vlan all
quit
interface Ethernet0/0/4 (la que de al pc C)
port link-type access
port default vlan 3
quit
stp root secondary
___________________
Router:
system-view
sysname R1
interface Ethernet0/0/1 (el que va a D)
ip address 192.168.0.61 27
quit
interface Ethernet0/0/0.2 (crea interfaz virtual)
dot1q termination vid 2
ip address 192.168.0.1 27
arp broadcast enable
quit
interface Ethernet0/0/0.3
dot1q termination vid 3
ip address 192.168.0.229 27 ( aquí arrojaba el error, intenté con varias IP
hasta que resultó con esta, estará bien en el rango?)
arp broadcast enable
quit
A: IP: 192.168.0.2
NM: 255.255.255.224
G: 192.168.0.1
B: 192.168.0.3
255.255.255.224
192.168.0.1
C: 192.168.0.32
255.255.255.224
192.168.0.31 *** (aquí cambié a 229, y la ip a 230 cuando funcionó la
interfaz virtual pero tampoco resultó)
D: 192.168.0.62
255.255.255.224
192.168.0.61
